Spider Platform Basket 13.80m

Spider Platform Basket 13.80m

The Spider 13.80 is a straight stick boom with jib making it the fastest set up from ground to 13 metres on the market. The Spider 13.80 is also the only telescopic self-propelled boom with fly jib in this range of aerial working platform. This machine also offers the option of either petrol or electric with a built in lithium battery.

Technical Specification

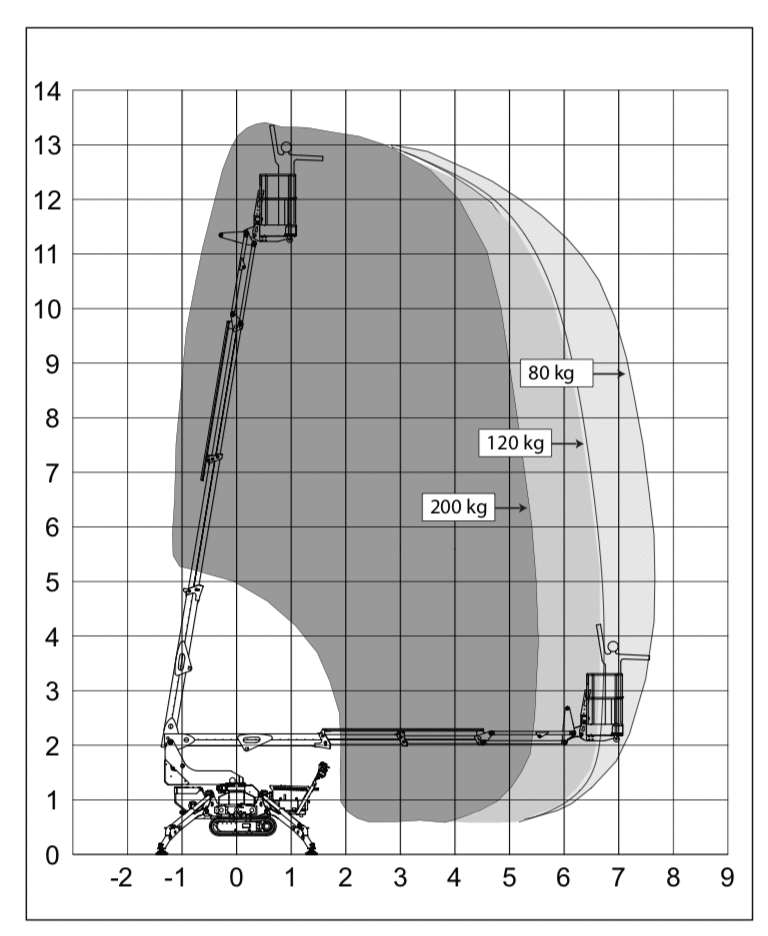

  • Max Working Height: 13.40m
  • Basket Floor Height: 11.40m
  • Outreach: 7.80m
  • Turret Rotation: 360°
  • Basket Dimensions: 1200mm x 700mm x 1100mm
  • Max Working Load: 200kg
  • Length In Stowed Position: 4200mm (Cage Removed) or 3550mm
  • Min Stowed Width: 780mm
  • Min Stowed Height: 1980mm
  • Outriggers Footprint: 2800mm x 2800mm
  • Driving Speed: 3,5 KMH
  • Diesel Engine: (Hatz) 10hp
  • Electric Power Pack: 240v AC
  • Max Grade-ability: 16° (29%)
  • Max Lateral Grade-ability: 12° (21%)
  • Total Weight: 1500kg
  • Ground Tracks Load: 3,06 KN/m²
  • Surface Load (Working Condition): 2.26 KN/m²
Industries
  • Agriculture & Forestry
  • Cleaning (Internal / External)
  • Electrical (Internal / External)
  • Energy Supply (Internal / External)
  • Facilities Management (Internal External)
  • Joinery & woodwork (Internal / External)
  • Mechanical Engineering (Internal / External)
  • Painting & decorating (Internal / External)
  • Point Of Sale
  • Property Development
  • Retail (Internal / External)
  • Industrial (Internal / External)
  • Domestic Roof Surveys
  • Church (Internal / External)
  • General Emergency Repairs

Enquire Today

Call us on 01925 830 874 or click the button to fill out a form
