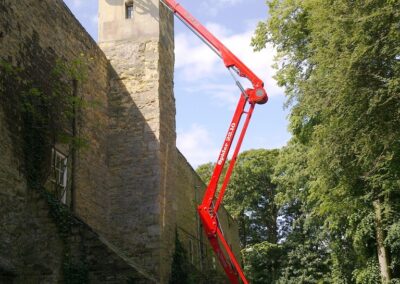

Spider Platform Basket 22.10m
The Spider 22.10 is a lightweight and easily transportable aerial work platform with an articulated boom with fly jib to provide access to those hard to reach areas. The Spider 22.10 is radio-controlled with an automatic outreach control system. This machine also allows the user to send through air/water and power cable from ground to cage.
Technical Specification

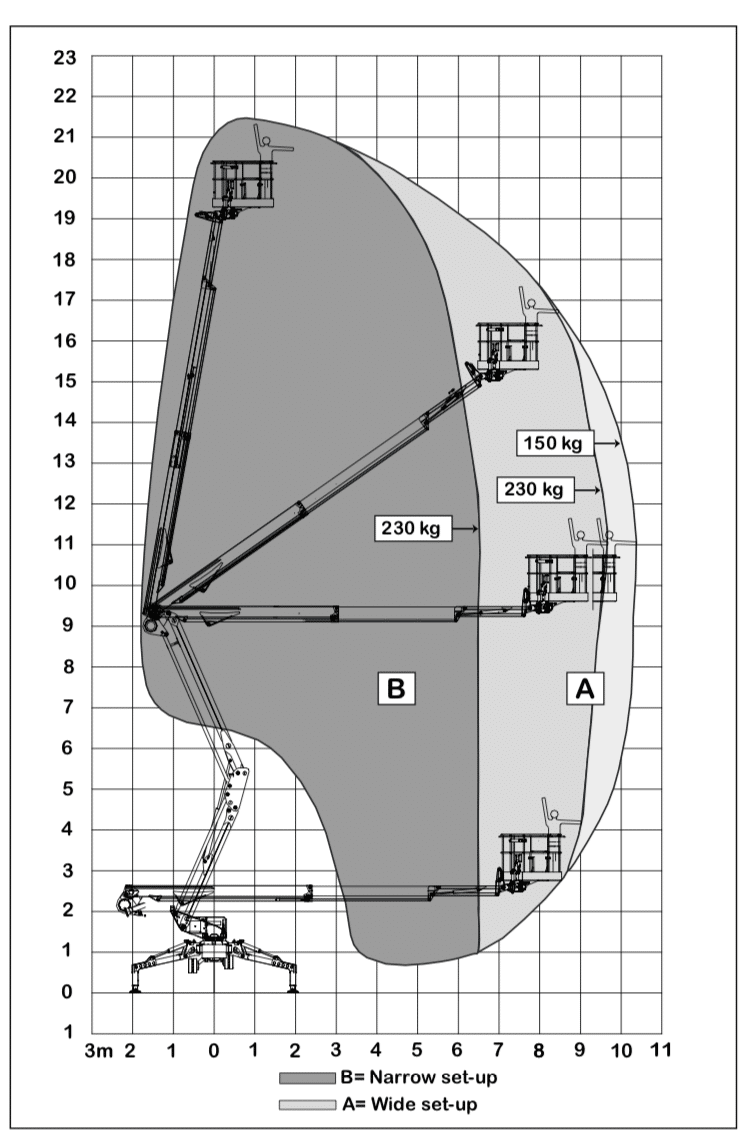

- Max Working Height: 21.70m
- Basket Floor Height: 19.70m
- Outreach: 10.30m
- Turret Rotation: 365°
- Basket Dimensions: 1500mm x 700mm x 1100mm
- Max Working Load: 230kg
- Length In Stowed Position: 5970mm (Cage Removed) or 5280mm
- Min Stowed Width: 980mm
- Min Stowed Height: 2060mm
- Outriggers Footprint: 3870mm x 3940mm
- Driving Speed: 1,5 KMH
- Diesel Engine: (Hatz) 10hp
- Electric Power Pack: 240v AC
- Max Grade-ability: 16° (29%)
- Max Lateral Grade-ability: 17° (31%)
- Total Weight: 3260kg
- Ground Tracks Load: 3.21 Kn/m²
- Surface Load (Working Condition): 2.09 Kn/m²
Industries
- Agriculture & Forestry
- Cleaning (Internal / External)
- Electrical (Internal / External)
- Energy Supply (Internal / External)
- Facilities Management (Internal External)
- Joinery & woodwork (Internal / External)
- Mechanical Engineering (Internal / External)
- Painting & decorating (Internal / External)
- Point Of Sale
- Property Development
- Retail (Internal / External)
- Industrial (Internal / External)
- Domestic Roof Surveys
- Church (Internal / External)
- General Emergency Repairs
