Tracked Access Platform Teupen LEO 13GT

Tracked Access Platform Teupen LEO 13GT

With a maximum working height of 12.75m The Teupen LEO 13GT is a tracked access platform that is suitable for your working at height access requirements.

in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

Technical Specification

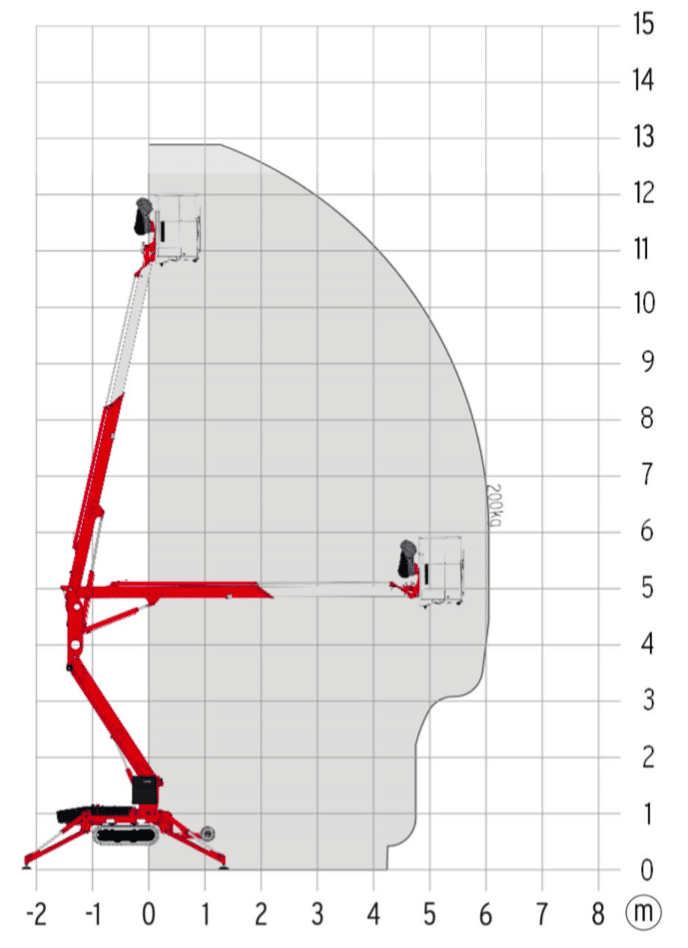

  • Working height, max: 12.75m
  • Horizontal outreach with 200kg: 6.05m
  • Up and Over Clearance, max: 4.60m
  • Basket capacity: 200kg
  • Turret rotation: 355°
  • To be jacked up on ground slope of: 10°/17.5%
  • Gradeability, max: 14.4°/25.5%
  • Slope angle: 14.4°/25.5%
  • Travel speed: 1.0 km/h
  • Platform height: 1.10m
  • Platform length: 0.70m
  • Platform width: 1.40m
  • Length, overall: 4.75m
  • Length without basket: 4.00m
  • Height, travel position: 1.99m
  • Width, minimal overall width: 0.78m
  • Ground clearance, max: (H) 0.40m – Track (L x W) 118 x 18 cm
  • Length outrigger footprint, max: 3.69m
  • Width outrigger footprint, max: 2.86m
  • Outrigger plate Ø: 0.18m
  • POWER
  • Standard power source:
    • 1) Electric: 230 V, 12.9 A, 2.2 kW
  • Optional power sources:
    • 1) Generator: External
    • 2) Petrol: Robin-Subaru EX21 (3.7 kW/5 hp)
    • 3) Diesel: Hatz 1B30 (5.4 kW/7.2 hp) Fuel tank capacity petrol engine: 3.6 l Fuel tank capacity Diesel engine: 5.0 l
